HoneywellSKU: 82393

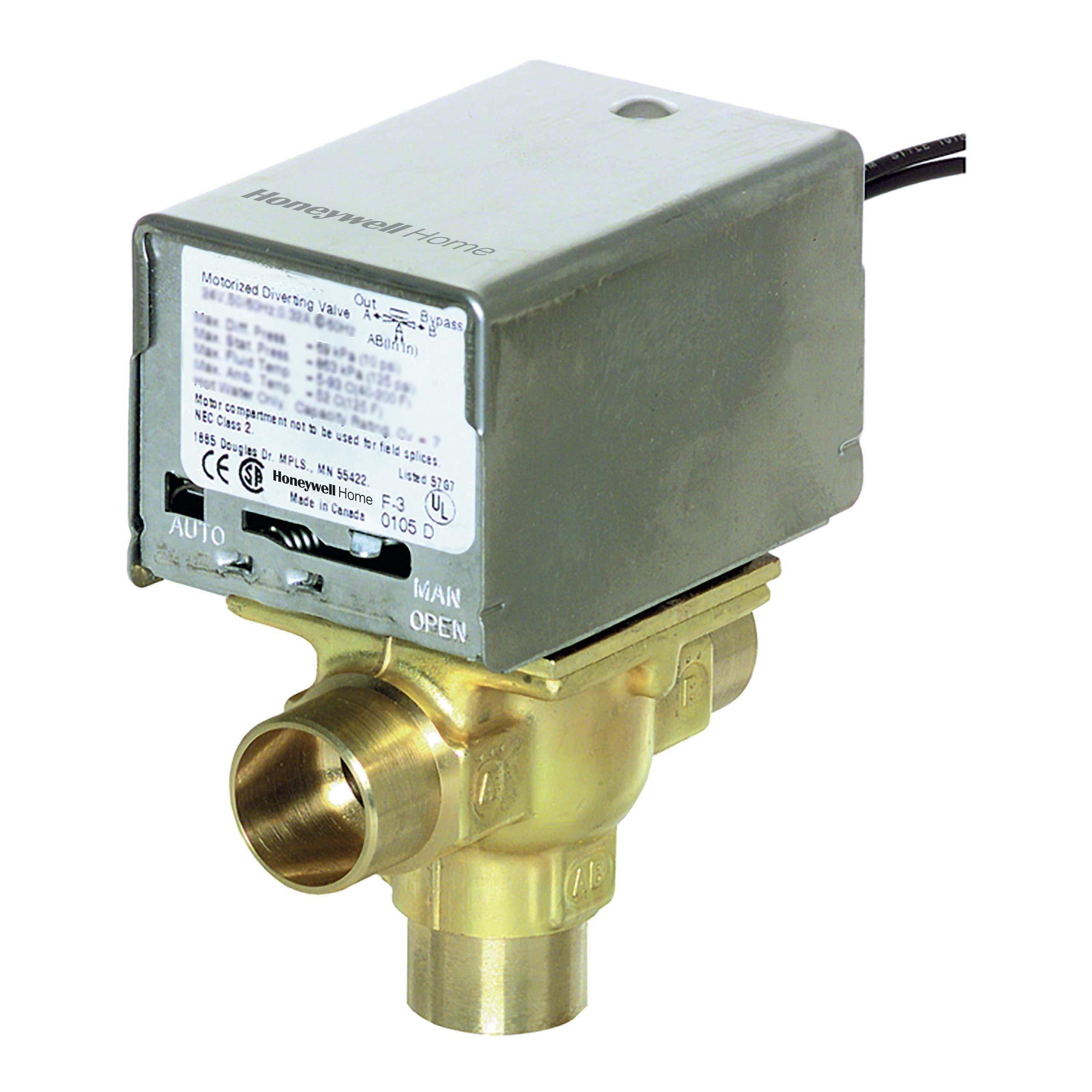

Honeywell Home V8044E1011/U 3-Way Diverting Zone Valve

$151.48
In stock (9)

Honeywell Home Zone Valve, 3-Way Diverting, Series: V8044, 3/4 in Nominal, C, 125 psi Static, 7 Cv, 24 VAC, 0.32 A, 40 to 200 deg F Water Temperature, 10 psi Differential, 18 in Lead, Brass, 3-1/2 in W x 2-3/8 in D x 4-13/16 in H, Import

Shipping policy

Orders placed by 2:00pm EST will ship same day. All orders ship via UPS/USPS/Fedex Ground.

More Details

Product overview
  • Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored
  • All models may be installed without disassembling the valve
  • Compact construction for easy installation
  • Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system
  • Actuator motor may be replaced without removing the valve body or draining the system
  • EPDM rubber packing
  • Buna-N (NBR) rubber ball plug/ball/disc
  • Brass seat and stainless steel stem
  • Spring return valve action
  • 7.7 VA power consumption
  • 5 to 95% non-condensing relative humidity (RH)
  • 30 sec nominal open
  • 50/60 Hz frequency
  • 125 deg F maximum ambient temperature
  • Normally closed de-energized position
Specifications
Manufacturer Part Number V8044E1011/U
UPC 85267109895
Overall Dimensions n/a
Material n/a
Domestic or Import Import
End Style n/a
Type 3-Way Diverting
ADA Compliance n/a
Resources
Delivery & Returns

Orders will ship same day if received by 2pm EST. We ship ground via USPS, UPS, and Fedex from our warehouse in CT. We do not offer expedited shipping at this time.

Free returns are available for unopened, unused items within 30 days.

All returns are inspected on receipt; credit is issued after condition is confirmed. Credit is issued only for items returned in original, saleable condition after inspection.
