HoneywellSKU: 245086

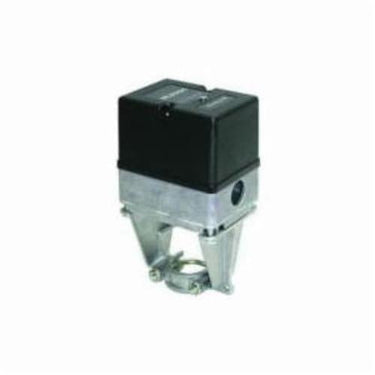

Honeywell ML6984A4000/U Valve Actuator

$307.91
Low Stock (2)

The ML6984 and ML7984 are self-contained, self-adjusting, motorized valve actuators that mount directly onto V5011 two-way and V5013 three-way globe valves, providing linear stem operation between 1/2 in (13 mm) and 1 in (25 mm). ML6984 is for use with low voltage SPDT Series 20, Series 60 (on-off) or SP3T Series 60 (floating) electro-mechanical and electronic controllers. ML7984 is for use with Series 70 0-10 VDC, 2-10 VDC, 4-20 mA; electronic Series 90 "SuperMod"; and 135 ohm modulating controllers.

Shipping policy

Orders placed by 2:00pm EST will ship same day. All orders ship via UPS/USPS/Fedex Ground.

More Details

Product overview
  • Allows the use of one common transformer power supply for multiple actuators and controllers
  • Self-contained motorized valve linkage
  • Linkage self-adjusts to valve stroke of 1/2 to 1 in
  • Multi-pose mounting
  • Strong valve seat closing force 160 lbf (710 N)
  • Compact design for easy installation in confined area
  • One device for either 24 VAC or 28 VDC power supply application
  • Electronic current sensing provides internal protection and positive full closing force
  • Field addable position feedback/auxiliary switch module available (5-wire control wiring only)
  • ML6984 models are compatible with 3 wire control systems
Specifications
Manufacturer Part Number ML6984A4000/U
UPC 85267833837
Overall Dimensions n/a
Material n/a
Domestic or Import Import
End Style n/a
Type n/a
ADA Compliance n/a
