ICM ControlsSKU: 1769350

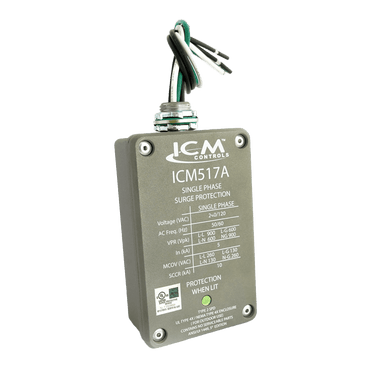

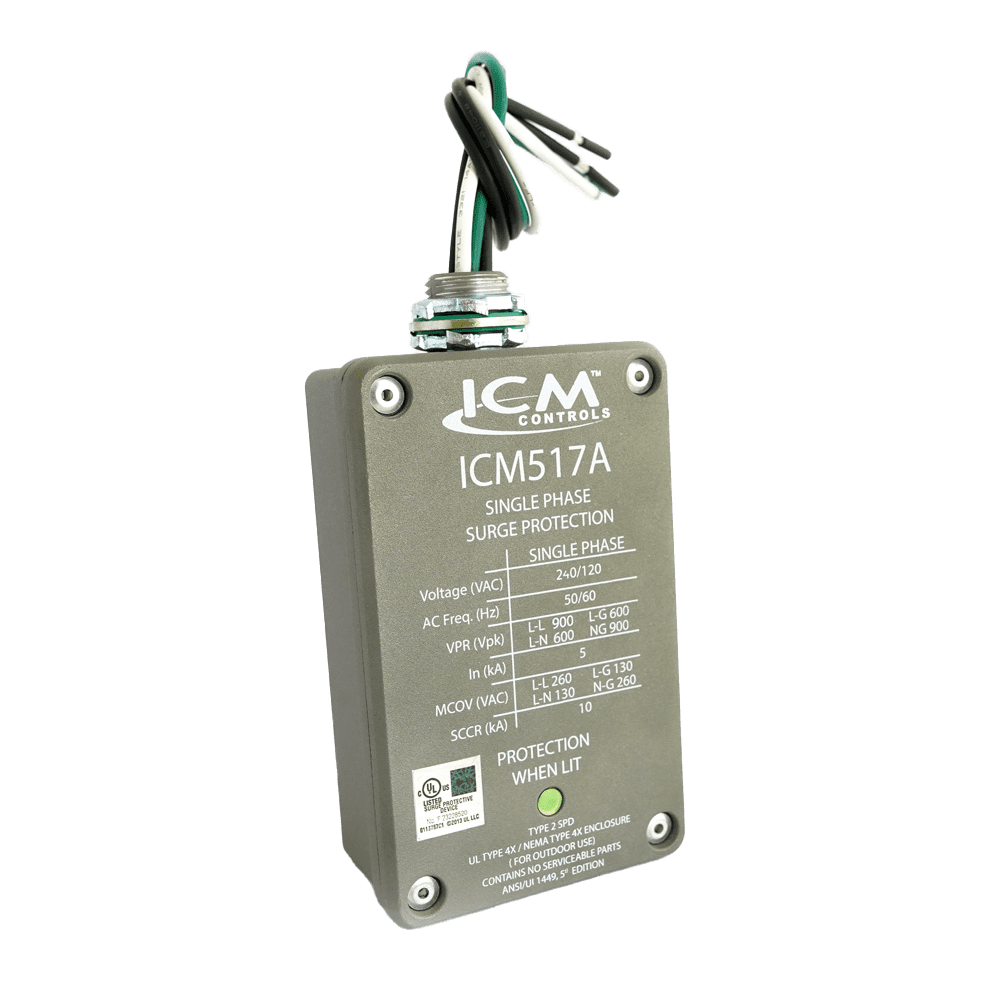

ICM Controls ICM517A Type 2 Surge Protector, 120/240V, 100kA

$88.13
In stock (94)

The ICM Controls ICM517A Type 2 Surge Protective Device safeguards valuable single-phase equipment against transient voltage spikes and damaging power surges. Rated for 120/240 VAC systems, it provides a maximum surge current capacity of 100,000 amps and maximum energy dissipation of 840 joules.

Built for demanding indoor and outdoor applications, the ICM517A features a rugged cast-aluminum NEMA Type 4X enclosure with a corrosion-resistant, UL-rated powder coating. Its redesigned rivet-sealed molded case and internal gasket provide additional protection against moisture and harsh environmental conditions, while its compact profile simplifies installation.

Ideal for air-conditioning and refrigeration systems, motors, electronics, appliances and other single-phase equipment, the American-made ICM517A delivers robust, reliable surge protection backed by a limited lifetime product warranty and an eligible connected-equipment warranty.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Type 2 surge protective device for single-phase equipment
  • Protects against momentary voltage spikes and transient power surges
  • 120/240 VAC operating voltage
  • Maximum surge current capacity of 100,000 amps
  • Maximum energy dissipation of 840 joules
  • Suitable for HVAC, refrigeration, motors, electronics and appliances
  • Rugged cast-aluminum enclosure provides maximum durability
  • NEMA Type 4X rated for indoor and outdoor installations
  • Rivet-sealed molded case with an internal gasket
  • Compact profile supports convenient installation
  • Designed to withstand high-impact surge events
  • Withstands prolonged UV exposure better than ABS plastic enclosures
  • UL-rated powder coating provides enhanced corrosion resistance
  • Updated to current applicable UL standards
  • Easy to install
  • Made in the USA
  • Limited lifetime product warranty
  • Eligible for an up-to-three-year, $25,000 connected-equipment warranty; terms and conditions apply
Specifications
Manufacturer Part Number ICM517A
UPC 800442029719
Overall Dimensions 5in L x 3.06in W x 1.75in H
Material n/a
Domestic or Import Domestic
End Style n/a
Type n/a
ADA Compliance n/a
Warning Professional installation required
Standards and Approvals UL Listed
