LittleGIANTSKU: 47610

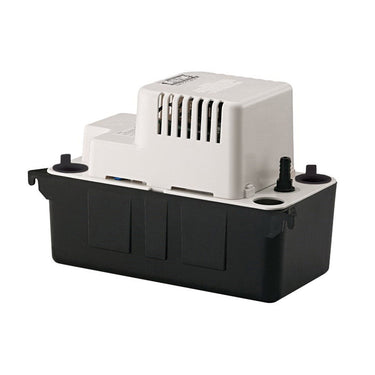

Little Giant® 554401 VCMA-15 Automatic Condensate Removal Pump

$70.80
In stock (36)

The VCMA-15UL is designed for automatic condensate removal from air conditioning, refrigeration, and dehumidification systems when gravity drainage is not feasible. This Little Giant® pump features a 65 gallons-per-hour flow rate, a 3/8 inch OD barbed outlet, and a 15-foot shutoff head. Powered at 60 watts with a 1 amp, 115 VAC 60 Hz motor, it delivers up to 6.5 psi pressure. The pump includes a glass-filled polypropylene impeller, a 1/2-gallon reservoir, and mounts easily on walls. It is constructed from ABS and operates safely at temperatures up to 75°F.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Vertical centrifugal pump design
  • Automatic start and stop operation
  • For models with safety overflow switch - dual function NO-NC operation (set to NO from factory for equipment shut down connection)
  • Models equipped with safety overflow switch include two 5 in switch lead wires
  • 3/8 in OD barbed discharge adapter with built-in check valve
  • Thermally protected, fan cooled motor
  • Three 1-1/8 in Dia inlet openings (two fitted with removable cap plug)
  • Built-in wall mount tabs on tank
  • Removable pump float locking tab for safety during transportation (remove at time of installation)
  • 6 ft, 3-conductor cable with grounded 3-prong plug
  • ABS motor cover, volute, tank, glass filled polypropylene impeller, acetal check valve
Specifications
Manufacturer Part Number 554401
UPC 10121544017
Overall Dimensions 11 in L x 5 in W x7 in H
Material n/a
Domestic or Import Import
End Style n/a
Type Automatic
ADA Compliance n/a
Warning n/a
Standards and Approvals cCSAus Certified
