MaxitrolSKU: 38473

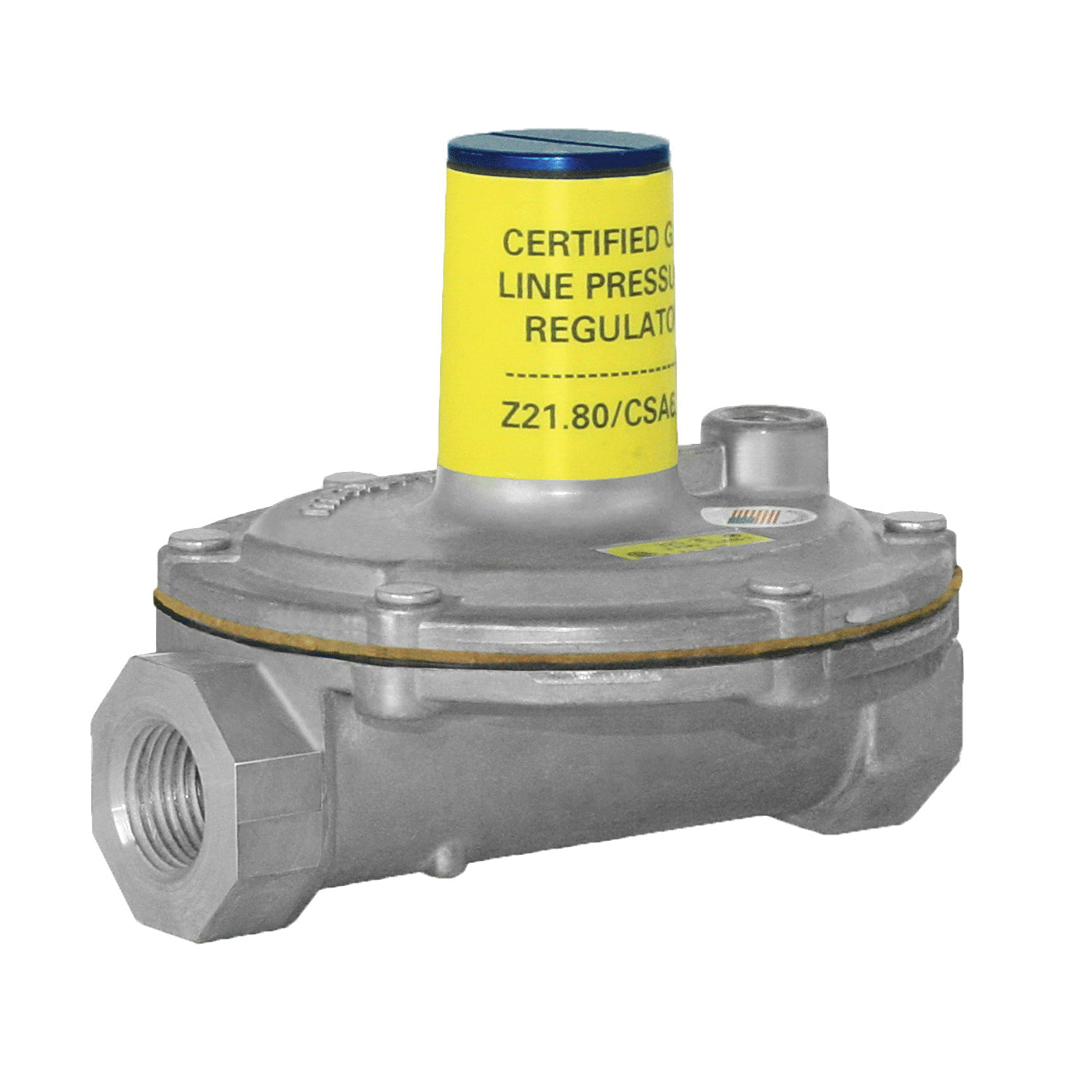

Maxitrol® 325-5-3/4 Lever Acting Design Appliance Regulator

$73.78
Low Stock (3)

Maxitrol® Appliance Regulator, Lever Acting Design, Series: 325, 3/4 in Nominal Size, Thread, 10 psi, -40 to 205 deg F, 5.9 in Inlet to Outlet Length, Aluminum Body, 5.3 in H

Shipping policy

Orders placed by 2:00pm EST will ship same day. All orders ship via UPS/USPS/Fedex Ground.

More Details

Product overview
  • Suitable for multi-positional mounting, If ball check vent limiting device is installed, mount in an upright position only
  • Note: capacities are used to determine the maximum multiple appliance load, the largest single appliance served by the regulator should not exceed the maximum individual load specified above
  • Minimum Regulation: Suitable for pilot flow applications
  • 65 psi emergency exposure limit (inlet side only)
  • 3/8 in NPT vent connection
  • 4.9 in swing radius
  • Maximum Individual Load: 325000 Btu/hr
  • Total load of multiple appliance combined capacity: 325000 Btu/hr
  • 7 to 11 in wc, 1.7 to 2.7 kPa at 2 psi (white CSA certified springs)
Specifications
Manufacturer Part Number 325-5-3/4
UPC n/a
Overall Dimensions n/a
Material n/a
Domestic or Import n/a
End Style n/a
Type Lever Acting Design
ADA Compliance n/a
