MoenSKU: 1616975

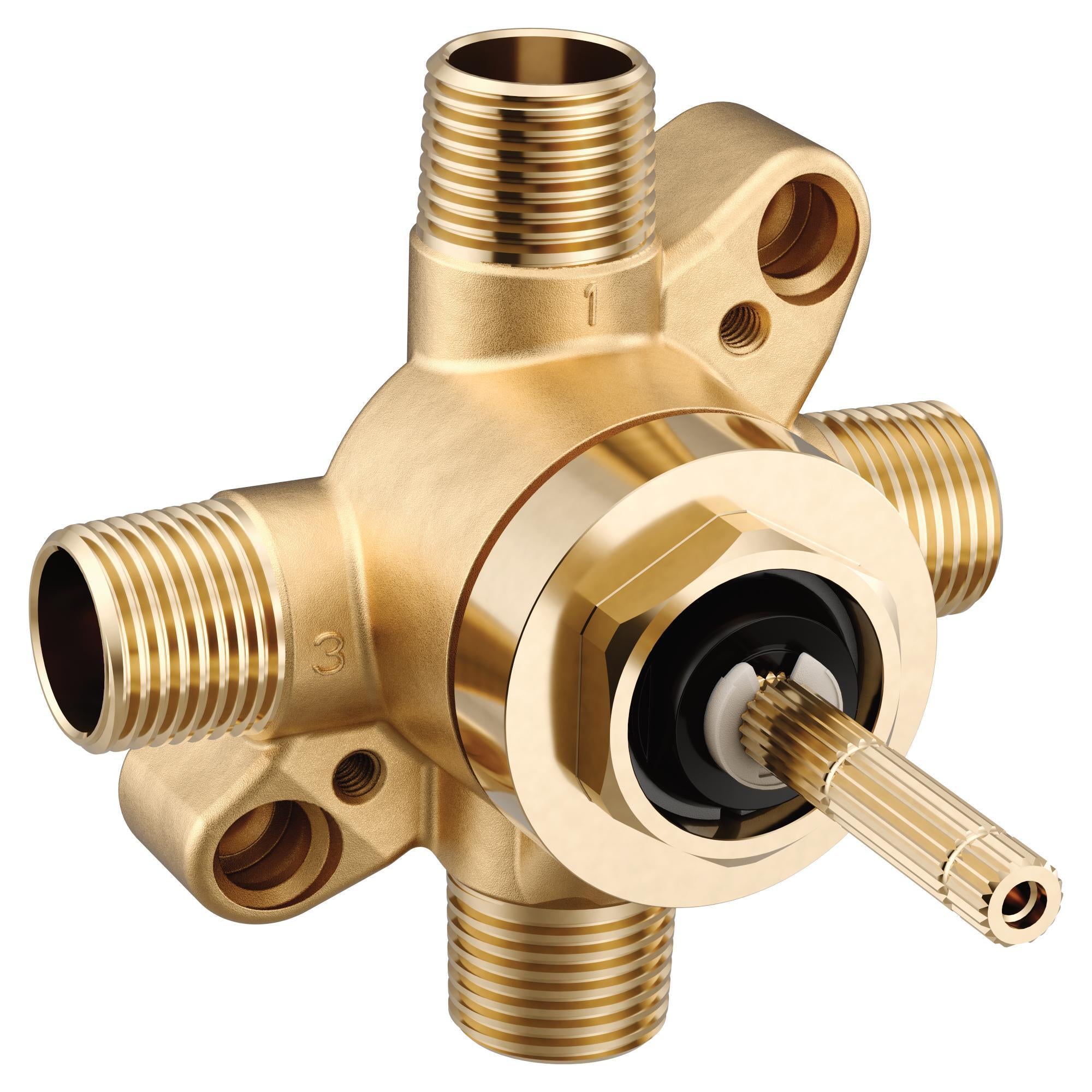

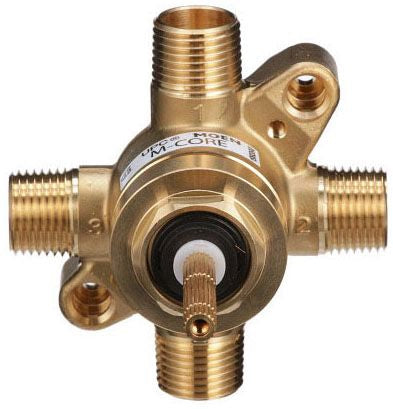

Moen® M-Pact™ M-Core™ U231CI 3-Port 2/3 Independent Function Transfer Valve

$110.11
Low Stock (3)

The Moen U231CI M-CORE 3-Port Transfer Valve delivers flexible shower functionality while simplifying rough-in installation. Designed for two- or three-outlet shower systems, the valve offers independent function control and can be modified at the cartridge when operating three showering devices.

Its integrated mounting bracket secures directly to a brace for a faster, more stable installation. As part of Moen’s M-CORE system, the U231CI also allows compatible trim, style and finish selections to be made after the valve is installed—ideal for new construction and bathroom remodeling projects.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Three-port transfer valve for controlling multiple showering devices
  • Supports two- or three-outlet shower configurations
  • Cartridge modification is required when using three showering devices
  • 1/2-inch CC/IPS inlet and outlet connections
  • Independent function operation
  • Durable brass valve body
  • Integrated mounting bracket attaches directly to a brace
  • Allows compatible M-CORE trim to be selected after rough-in
  • Suitable for new construction and remodeling applications
  • Wall-mount installation
  • Transfer valve caps sold separately
  • Refer to Moen’s transfer valve instructions for three-device setup requirements
Specifications
Manufacturer Part Number U231CI
UPC 26508319574
Overall Dimensions n/a
Material n/a
Domestic or Import Domestic
End Style n/a
Type 3-Port 2/3 Independent Function
ADA Compliance n/a
Warning n/a
Standards and Approvals ASME A112.18 | CSA B125.1
