ResideoSKU: 38076

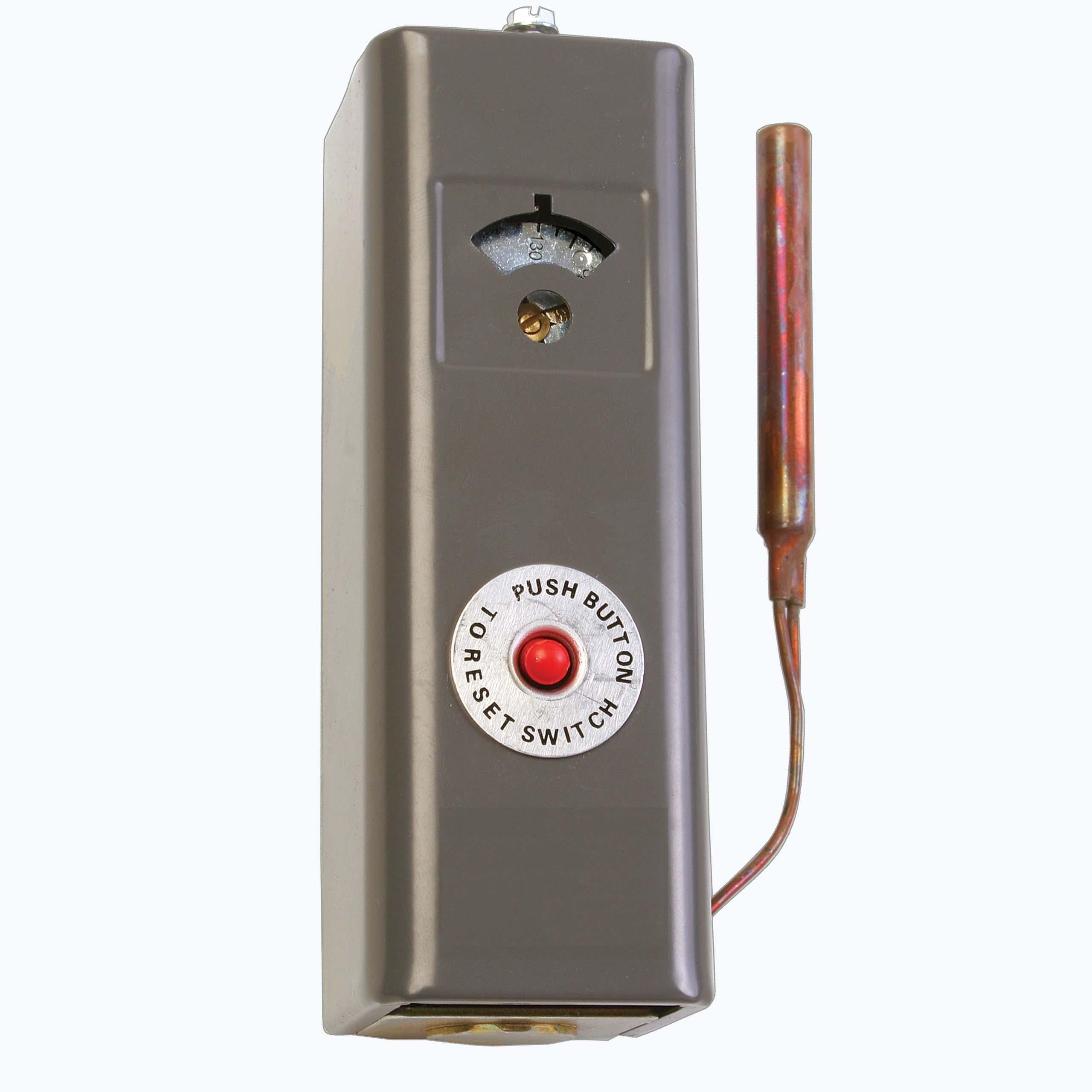

Resideo L4006E1067/U Breaks on Rise Aquastat Controller

$273.94
In stock (16)

Resideo Aquastat Controller, Breaks on Rise, 120 to 240 VAC/0.25 to 12 VDC, 130 to 270 deg F, 5.1 to 48 A, Horizontal/Vertical Mount, 3/8 x 2-7/8 in Copper Bulb, Micro Switch™ Snap-Acting Switch

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Totally enclosed Micro switch™ snap-acting switches operate on temperature rise to set point
  • Visible control point scale and external adjustments screw permit easy setting
  • Horizontal or vertical insertion of the sensing element
  • Direct or well immersion of the sensing element
  • Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications
  • TRADELINE® models include heat-conductive compound
  • 5.1 to 8 A at 120 to 240 VAC for full load
  • 30.6 to 48 A at 120 to 240 VAC for locked rotor
Specifications
Manufacturer Part Number L4006E1067/U
UPC 85267048903
Overall Dimensions 5-1/2 in W x 4-13/16 in D x 3 in H
Material n/a
Domestic or Import n/a
End Style n/a
Type Breaks on Rise
ADA Compliance n/a
Warning Professional installation required
Standards and Approvals AGA Certified | CSA File No. LR95329-1 | Guide No MBPR2 | UL File No. MP466
