ResideoSKU: 38117

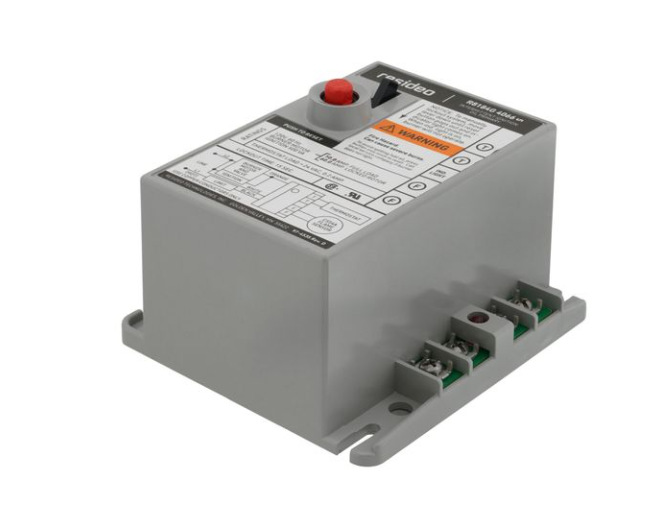

Resideo Protectorelay® R8184G4066/U Oil Burner Control

$190.74
In stock (6)

Resideo Protectorelay® Oil Burner Control, 120/240 VAC, 3.7 to 7.4 A, Intermittent Ignition, -40 to 130 deg F, Junction Box Mount, 4-3/8 in H x 4 1/8 in W x 2 1/2 in D

Shipping policy

Orders placed by 2:00pm EST will ship same day. All orders ship via UPS/USPS/Fedex Ground.

More Details

Product overview
  • Provides automatic, no recycling control of an intermittent ignition oil burner system
  • Controls oil burner, oil valves (if desired) and the ignition transformer in response to a call for heat
  • Solid state flame sensing circuit
  • LED on terminal strip indicates system lockout
  • Remote lockout indication (available on some models)
  • Enclosed safety switch with external reset button
  • Manual trip lever opens safety switch for system maintenance

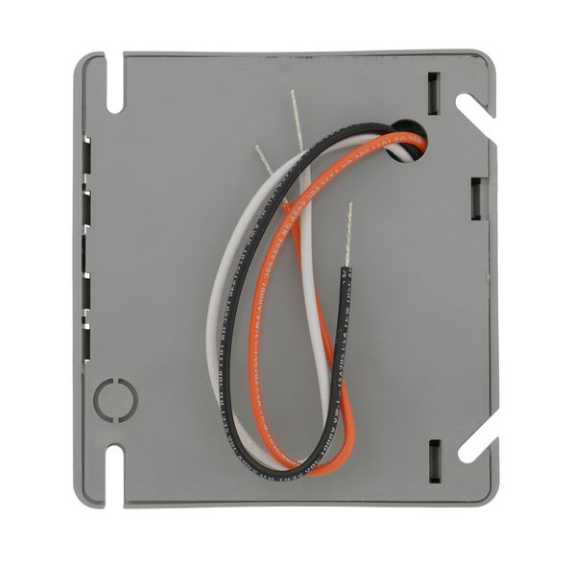

  • Mounts on standard 4 x 4 in junction box select models may be mounted directly on burner housing
  • C554A cadmium sulfide flame detector and 24 VAC thermostat required
  • 22.2 to 44.4 A at 120 to 240 VAC for locked rotor
Specifications
Manufacturer Part Number R8184G4066/U
UPC 85267078672
Overall Dimensions 60 in L x 1/2 in W x 1/2 in H
Material n/a
Domestic or Import n/a
End Style n/a
Type n/a
ADA Compliance n/a
