ResideoSKU: 1291757

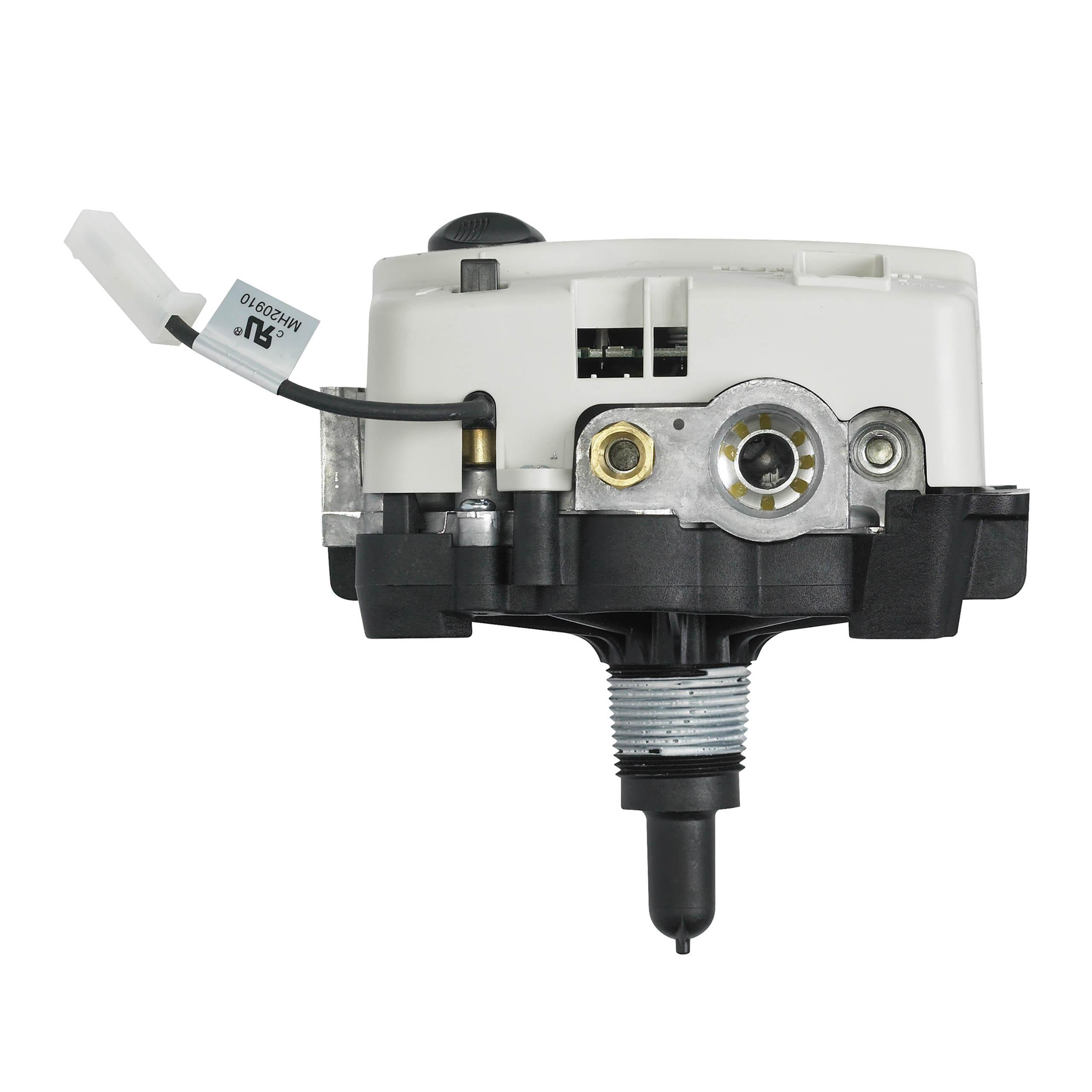

Resideo WT8840A1000/U Water Heater Control

$188.87
In stock (7)

The WT8840 series is the Water Heater Control for trade use to replace WV8840 valves used in A O Smith and Bradford White Water Heaters. It is designed for use in Standing Pilot applications using an immersion well for water temperature sensing.

Shipping policy

Orders placed by 2:00pm EST will ship same day. All orders ship via UPS/USPS/Fedex Ground.

More Details

Product overview
  • Compact size, provide two automatic valves
  • Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
  • Diaphragm-operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted
  • Meets codes requiring dual safety shutoff
  • All adjustments, wiring connections and pilot outlet are accessible from top of control
  • Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
  • Compatible with ECO connector
  • On-off lighting sequence
  • Use with S86F,H, S860D, S8600F,H, S8610 and S90A,B control module
  • Natural to LP and LP to natural conversion kits available for standard and slow opening gas valves
Specifications
Manufacturer Part Number WT8840A1000/U
UPC 85267567398
Overall Dimensions n/a
Material n/a
Domestic or Import n/a
End Style n/a
Type n/a
ADA Compliance n/a
