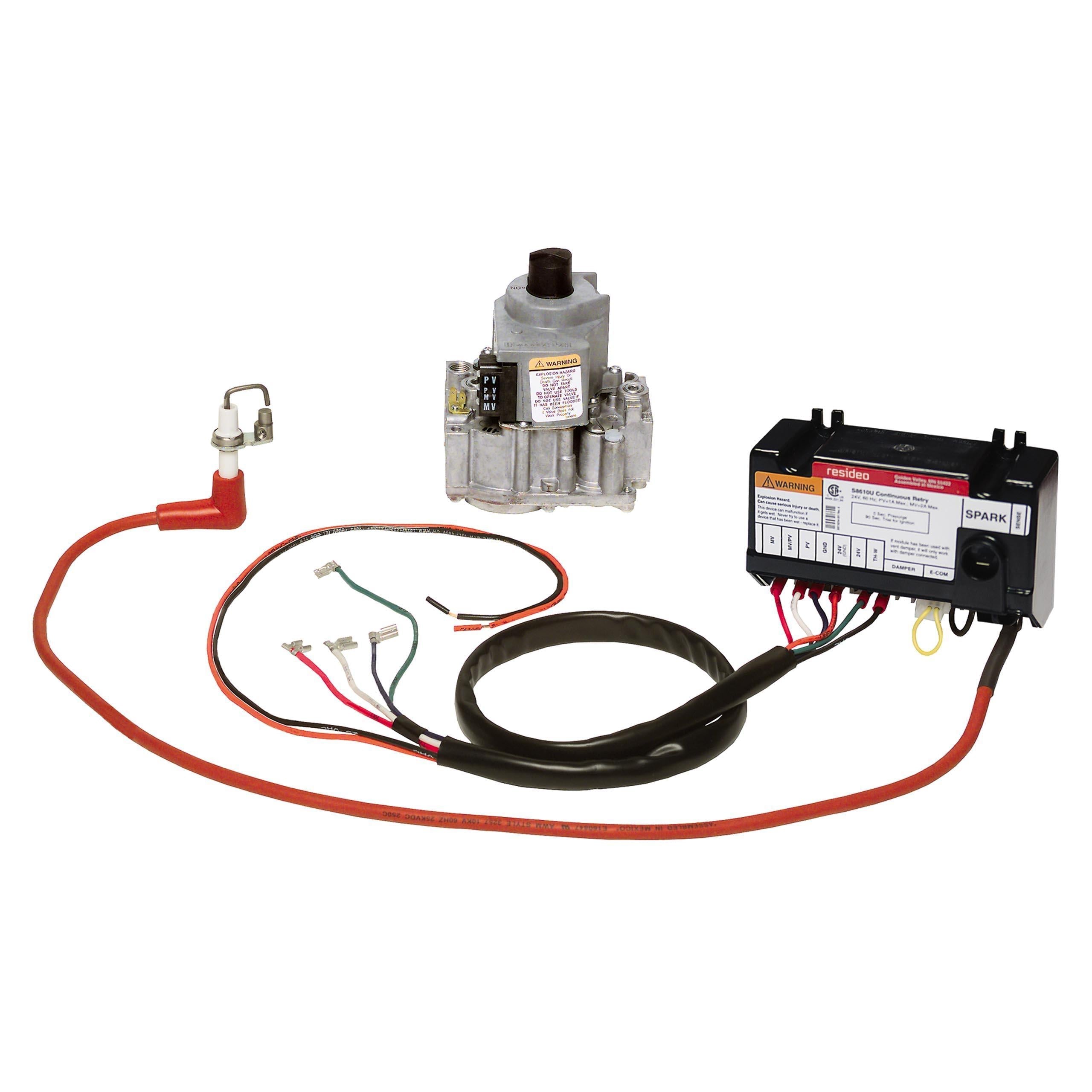

Resideo Y8610U6006/U Intermittent Pilot Retrofit KitResideo Y8610U6006/U Intermittent Pilot Retrofit Kit
Resideo Y8610U6006/U Intermittent Pilot Retrofit Kit
ResideoSKU: 65349

Resideo Y8610U6006/U Intermittent Pilot Retrofit Kit

$437.29
In stock (7)

Upgrade your heating system with the Resideo Y8610U6006/U Intermittent Pilot Retrofit Kit. This reliable 270,000 BTU/hr capacity unit features quick terminal connections for fast installation and works seamlessly with both natural gas and liquid propane systems. Engineered for consistent 30-second prepurge cycles and 1/2 psig pressure operation, it delivers dependable performance with 24 VAC control. Ideal for retrofit applications in residential and commercial heating setups.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Replaces over 400 Resideo, Honeywell, White-Rodgers and Robertshaw intermittent pilot ignition modules.
  • Controls ignition, monitors the pilot flame and provides safety shutoff for intermittent pilot furnaces and heating appliances.
  • Shuts off all pilot gas if the pilot fails to light. Retries after a 6-minute delay until the appliance lights or the call for heat ends.
  • Works with natural gas or LP gas.
  • Supports single-rod and dual-rod/remote flame sensing applications.
  • Includes spark cable adapters so you can reuse the existing spark cable when replacing compatible controls.
  • Enhanced ignition performance helps maintain operation during light-off and reduce contaminant buildup on the flame rod.
  • One LED displays operating status, error codes and flame strength. Status and error codes are printed on the label for quick troubleshooting.
Specifications
Manufacturer Part Number Y8610U6006/U
UPC 85267311526
Overall Dimensions n/a
Material n/a
Domestic or Import Import
End Style n/a
Type n/a
ADA Compliance n/a
Warning Professional installation required
Standards and Approvals ANSI Z21.71
