Taco®SKU: 39373

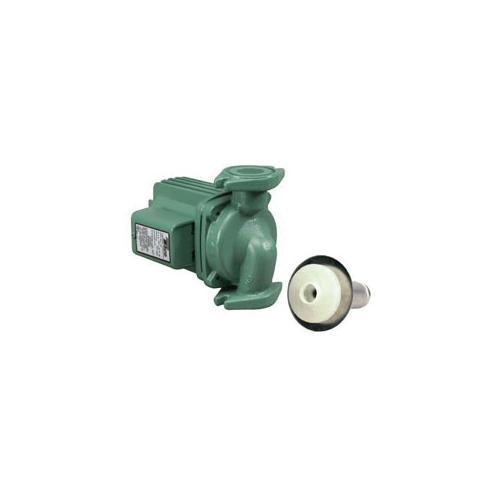

Taco® 0011-F4 11 Series High Velocity Cartridge Circulator

$491.80 Sold out

The Taco® 0011 is specifically designed for high head/medium flow applications in large residential or light commercial closed loop hydronic heating and chilled water cooling systems. Ideal for high pressure drop boilers, fan coil units, heat exchangers, large radiant heating and heat recovery/geothermal systems. The stainless steel 0011 can be used on open loop systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. Universal flange to flange dimensions and orientation allows the 0011 to easily replace other models. Compact, low power consumption design makes it ideal for high efficiency jobs.

Shipping policy

Orders placed by 2:00pm EST will ship same day. All orders ship via UPS/USPS/Fedex Ground.

More Details

Product overview
  • Exclusive ACB anti-condensate baffle with ambient air flow-Protects motor windings against condensate buildup
  • For indoor use only
  • Low-lead compliant
  • Construction: cast Iron casing (volute), aluminum stator housing, stainless steel cartridge, non-metallic impeller, ceramic shaft, carbon bearings, EPDM O-ring and gaskets
  • Impedance protected permanent split capacitor motor
  • 3/4, 1, 1-1/4, 1-1/2 in flanged connection
  • High velocity performance, compact design
  • Quiet, Efficient operation
  • Direct drive-Low power consumption
  • Unique replaceable cartridge design, field serviceable
  • Self lubricating
  • No mechanical seal
  • Unmatched reliability-maintenance free
  • Universal flange to flange dimensions
Specifications
Manufacturer Part Number 0011-F4
UPC 687752190991
Overall Dimensions n/a
Material n/a
Domestic or Import n/a
End Style n/a
Type High Velocity
ADA Compliance n/a
