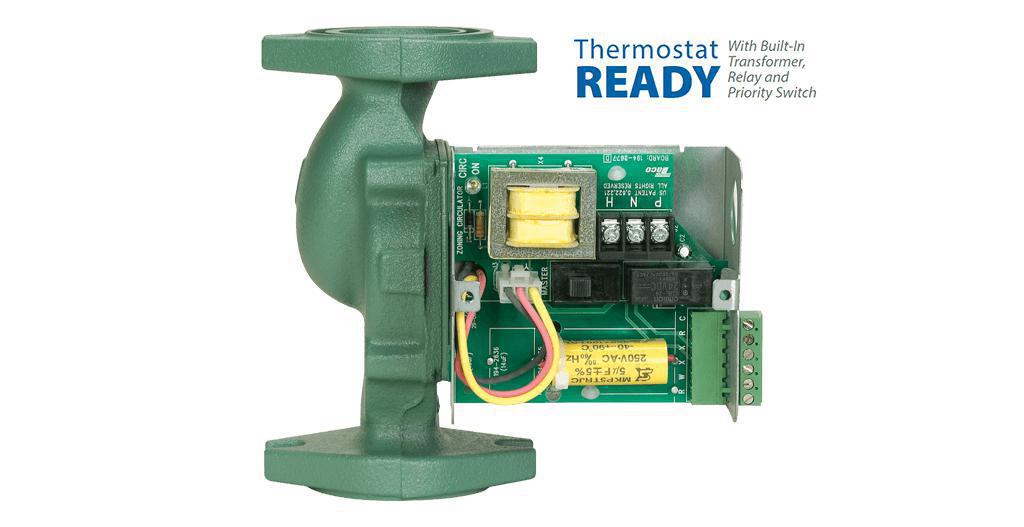

Taco® 0014-F1 14 Series High Velocity Cartridge CirculatorTaco® 0014-F1 14 Series High Velocity Cartridge Circulator
Taco® 0014-F1 14 Series High Velocity Cartridge Circulator
TacoSKU: 316552

Taco® 0014-F1 14 Series High Velocity Cartridge Circulator

$849.00 $592.43 Sale
Low Stock (1)

Taco®, 0014-F1, Cartridge Circulator, High Velocity, Series: 14 Series, 32 gpm Flow Rate, 1-1/2, 1, 3/4, 1-1/4 in Inlet, 22 ft Maximum Head, 1/8 hp Power, 115 VAC, 1.45 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 5-3/8 in W x 7-1/4 in D x 6-1/2 in H Dimensions

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Exclusive anti-condensate baffle (ACB) with ambient air flow
  • No mechanical seal
  • Universal flange to flange dimensions
  • For indoor use only
  • Low-lead compliant
  • Construction: cast Iron casing (volute), aluminum stator housing, stainless steel cartridge, non-metallic impeller, ceramic shaft, carbon bearings, EPDM O-ring and gaskets
  • Impedance protected permanent split capacitor motor
  • 3/4, 1, 1-1/4, 1-1/2 in flanged connection
  • Direct drive - Low power consumption
  • Protects motor windings against condensate buildup
  • High Velocity performance,Compact design
  • Quiet, efficient operation
  • Self lubricating
  • Unique replaceable cartridge design, Field serviceable
  • Unmatched reliability, Maintenance free
Specifications
Manufacturer Part Number 0014-F1
UPC 687752181593
Overall Dimensions 30 in L x 3/4 in W x 3/4 in H
Material n/a
Domestic or Import n/a
End Style n/a
Type High Velocity
ADA Compliance n/a
Warning n/a
Standards and Approvals cULus Listed | NSF 372 | UL-CUS
