ResideoSKU: 1457187

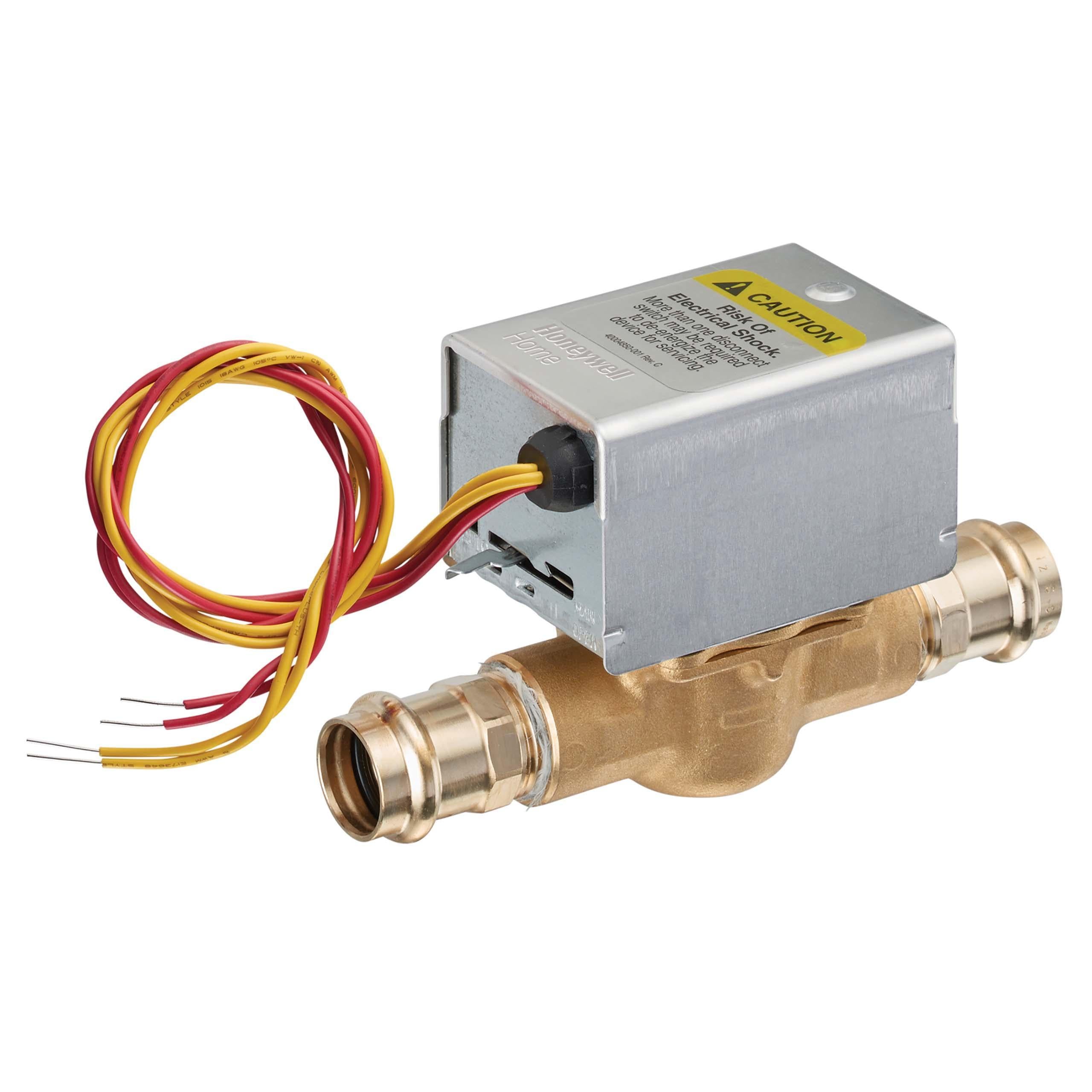

Honeywell Home Resideo V8043E1413/U 1" ProPress 2-Way Zone Valve, 24V, 8.5 Cv, End Switch

$204.13
In stock (26)

The 1" Viega ProPress version of the Honeywell Home V8043E zone valve, made by Resideo, which calls it the Pro Press QuickFit valve. The 8.5 Cv port handles larger zones while still closing off against 20 psi, and the press connections mean no soldering at the valve. Normally closed, 24V, with end switch and 18" leads.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays. Upcoming Closures: 11/26 and 11/27

More Details

Product overview
  • Size: 1" Viega ProPress; 8.5 Cv; 20 psi max close-off
  • Type: 2-way, normally closed; spring return to close on power loss
  • Electrical: 24 VAC; two-position control; 18" leads
  • Opening time: 15 seconds
  • Temperature: fluid 40–200°F; ambient up to 125°F
  • Includes: end switch enclosure and manual opener
  • Valve ball: Buna-N (NBR) rubber
  • Approvals: UL Listed (File MH11826), CSA Certified (File 1322)
  • Warranty: 1 year
  • Brand: Honeywell Home and Resideo are the same product line; Resideo makes Honeywell Home products under license from Honeywell
Specifications
Manufacturer Part Number V8043E1413/U
UPC n/a
Overall Dimensions n/a
Material n/a
Domestic or Import n/a
End Style n/a
Type 2-Position Low Voltage Normally Closed
ADA Compliance n/a
Warning n/a
Standards and Approvals n/a
