ViegaSKU: 754247

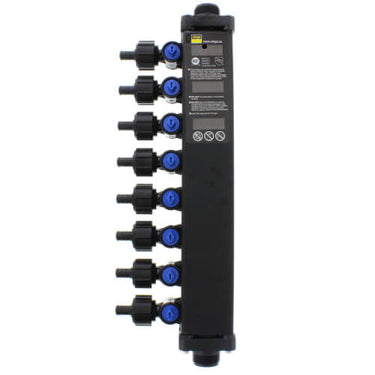

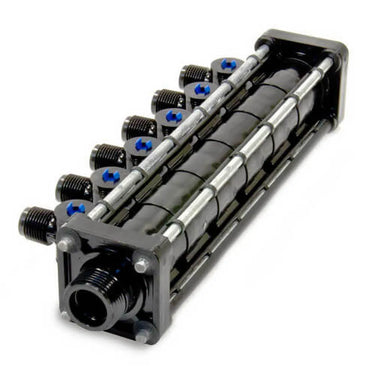

Viega 50083 8 Port Minibloc Manifold

$147.24 $99.95 Sale
In stock (20)

Viega's 8-port MiniBloc manifold streamlines PEX distribution with individual shut-off valves on each 1/2" crimp port, giving you fixture-level control without extra valves. Works seamlessly with ViegaPEX Ultra tubing and all standard PEX types (A, B, C). The package includes PEX adapters and a valve key for quick setup. Note: supply adapters for your main water line are sold separately, as are end caps, port caps, and brackets.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • 8-port manifold with individual shut-off valves for each branch
  • 1/2" PEX crimp connections on all branch outlets
  • 1" hot and cold water inlet connections (requires Manabloc adapters)
  • 1-11/16" on-center branch spacing for flexible installation
  • Rated for 100 PSI maximum pressure at 180°F
  • Low pressure drop: 3.4 PSI at 4.0 GPM flow rate
  • K-Factor 0.21 optimized for 1/2" PEX tubing
  • Lead-free polysulfone construction approved for potable water
  • UPC-IAPMO certified for code compliance
  • Made in the USA
Specifications
Manufacturer Part Number 50083
UPC n/a
Overall Dimensions 16.59"L x 2-1/2"H x 4-3/8"W
Material n/a
Domestic or Import Domestic
End Style n/a
Type n/a
ADA Compliance n/a
Warning n/a
Standards and Approvals NSF/ANSI 61 & 372, ASTM F876/F877, CSA B137.5 certified
