WATTSSKU: 1005461

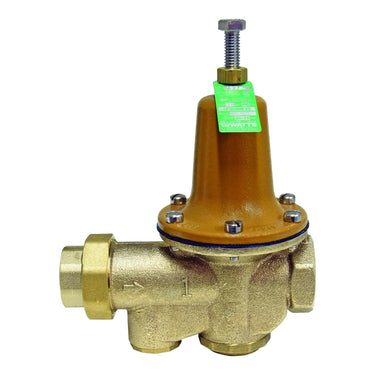

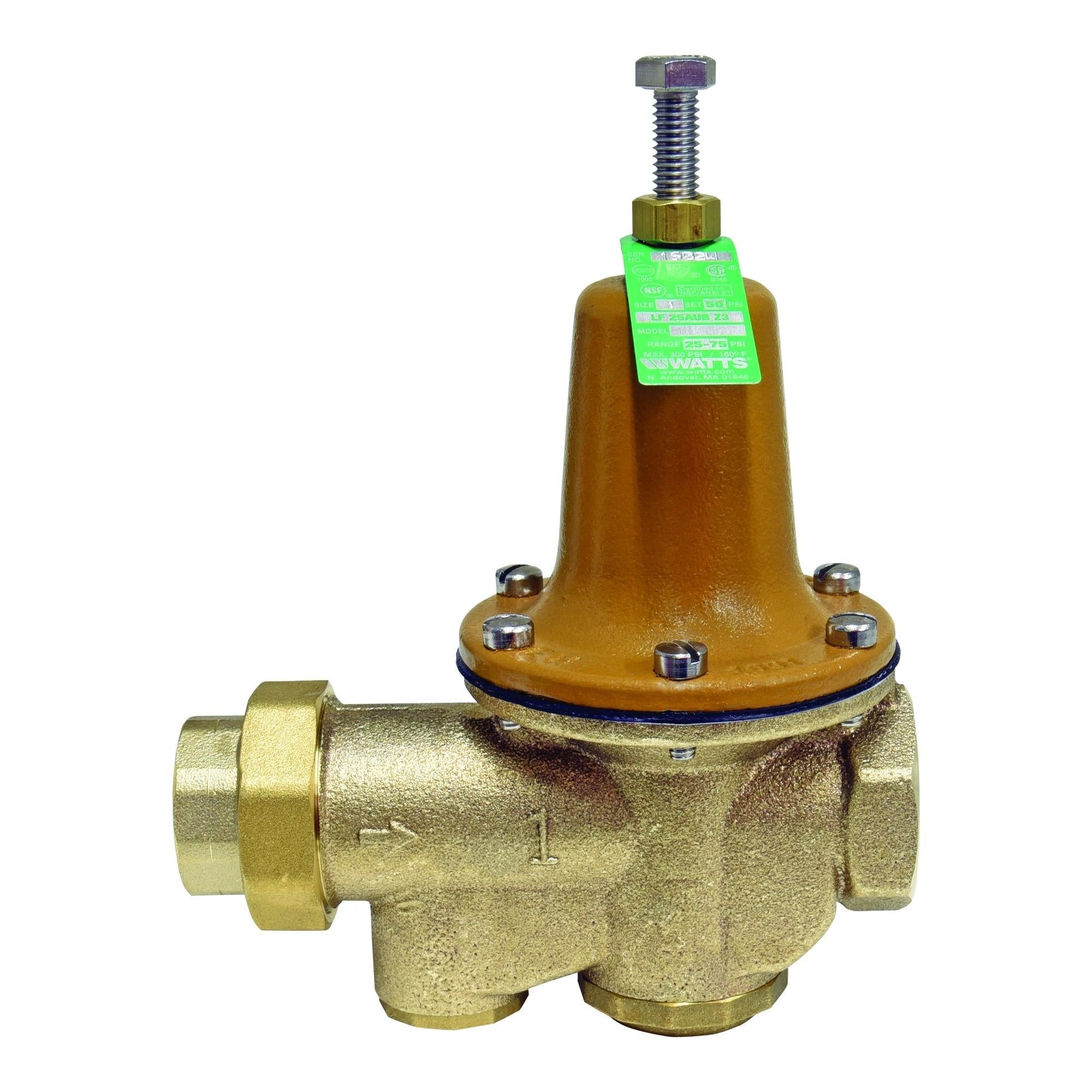

WATTS® 0009309 LF25AUB-Z3 Pressure Reducing Valve, 1 in

$505.65
In stock (7)

The WATTS® 0009309 LF25AUB-Z3 is a 1-inch lead-free brass pressure reducing valve designed to lower incoming water pressure, safeguarding plumbing systems and conserving water in commercial, industrial, and residential settings. It features a maintainable assembly with a replaceable seat module, NPT female union inlet, NPT female outlet, and a bypass function to manage thermal expansion pressure. Operating within temperatures from 33°F to 180°F (0.5°C to 82°C) and up to 300 psi (20.7 bar), the valve’s pressure can be adjusted between 25 and 75 psi (172 to 517 kPa), with a standard factory setting of 50 psi (345 kPa).

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Integral stainless steel strainer removable for cleaning
  • Replaceable seat module
  • Serviceable in line
  • Bypass feature controls thermal expansion pressure
  • Sealed spring cage with stainless steel cage screws
  • Temperature range is 33 to 180 deg F
  • Designed to reduce incoming water pressure to protect plumbing systems
Specifications
Manufacturer Part Number 0009309
UPC n/a
Overall Dimensions n/a
Material n/a
Domestic or Import n/a
End Style n/a
Type n/a
ADA Compliance n/a
Warning n/a
Standards and Approvals ANSI A112.26.2 | ASSE Standard 1003 | CSA Standard B356 | IAPMO Listed | MIL-V-18146B Type I | NSF Approved | Southern Standard Plumbing Code | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
