Weil-McLain® 382-200-448 Integrated Boiler Control AssemblyWeil-McLain® 382-200-448 Integrated Boiler Control Assembly
Weil-McLain® 382-200-448 Integrated Boiler Control Assembly
Weil-MclainSKU: 691009

Weil-McLain® 382-200-448 Integrated Boiler Control Assembly

$331.01
In stock (4)

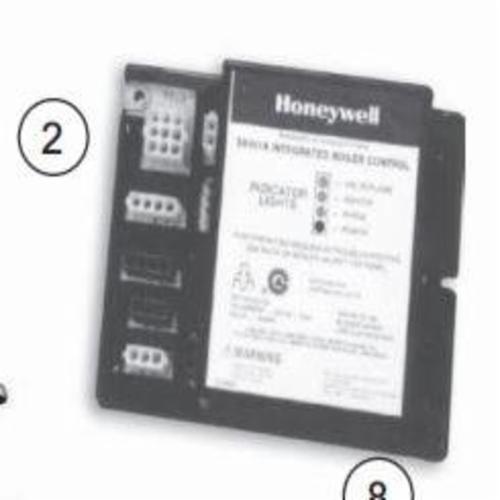

The Weil-McLain 382-200-448 is the OEM Gold Control Module Conversion Kit for GV, HE II, HE II-3, GV90+, VHE, and AHE series boilers. It replaces legacy Honeywell S9301A1001 and S9301A1027 controls as well as United Technologies 1013-10 and 1013-100 modules, upgrading the system to the current UT 1013-200 Gold Module platform.

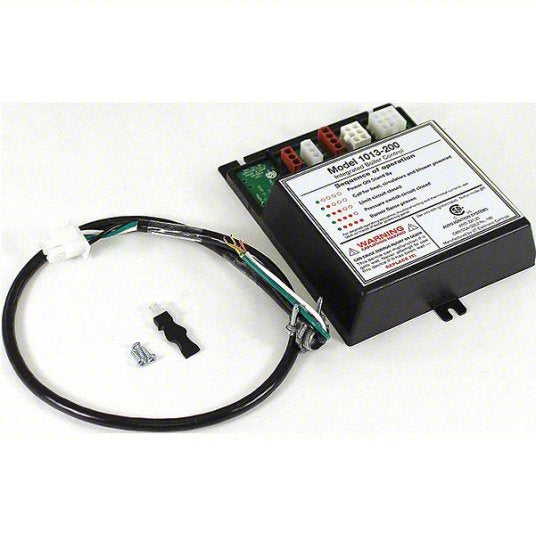

The kit includes the UT 1013-200 module, circulator harness, and temperature sensor jumper — everything needed for a complete field conversion. Rated at 24V and compatible with both natural gas and propane applications, this assembly manages ignition sequencing, flame sensing, temperature regulation, and safety lockout functions.

Professional installation required.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Fits GV, GV90+, HE, HE II, HE II-3, VHE, and AHE series boilers

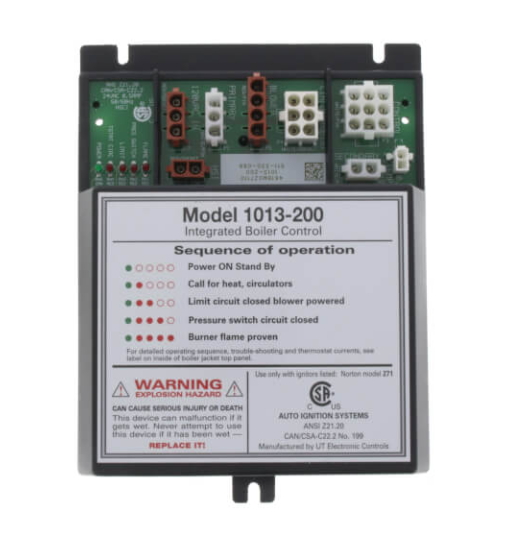

  • Includes: UT 1013-200 Gold Module, circulator harness, temperature sensor jumper
  • 24V; compatible with natural gas and propane
  • Replaces Honeywell S9301A1001, S9301A1027 and UTC 1013-10 / 1013-100
  • Safety lockout engages after 3 consecutive failed ignition trials
Specifications
Manufacturer Part Number 382-200-448
UPC 672619143401
Overall Dimensions 13-1/2 in W x 6-1/4 in D x 7-1/4 in H
Material n/a
Domestic or Import n/a
End Style n/a
Type Control Assembly
ADA Compliance n/a
Warning Professional installation required
Standards and Approvals n/a
