Westwood Tigerloop ULTRA-B S220-9 Oil de-aeratorWestwood Tigerloop ULTRA-B S220-9 Oil de-aerator
Westwood Tigerloop ULTRA-B S220-9 Oil de-aerator
WestwoodSKU: 1496270

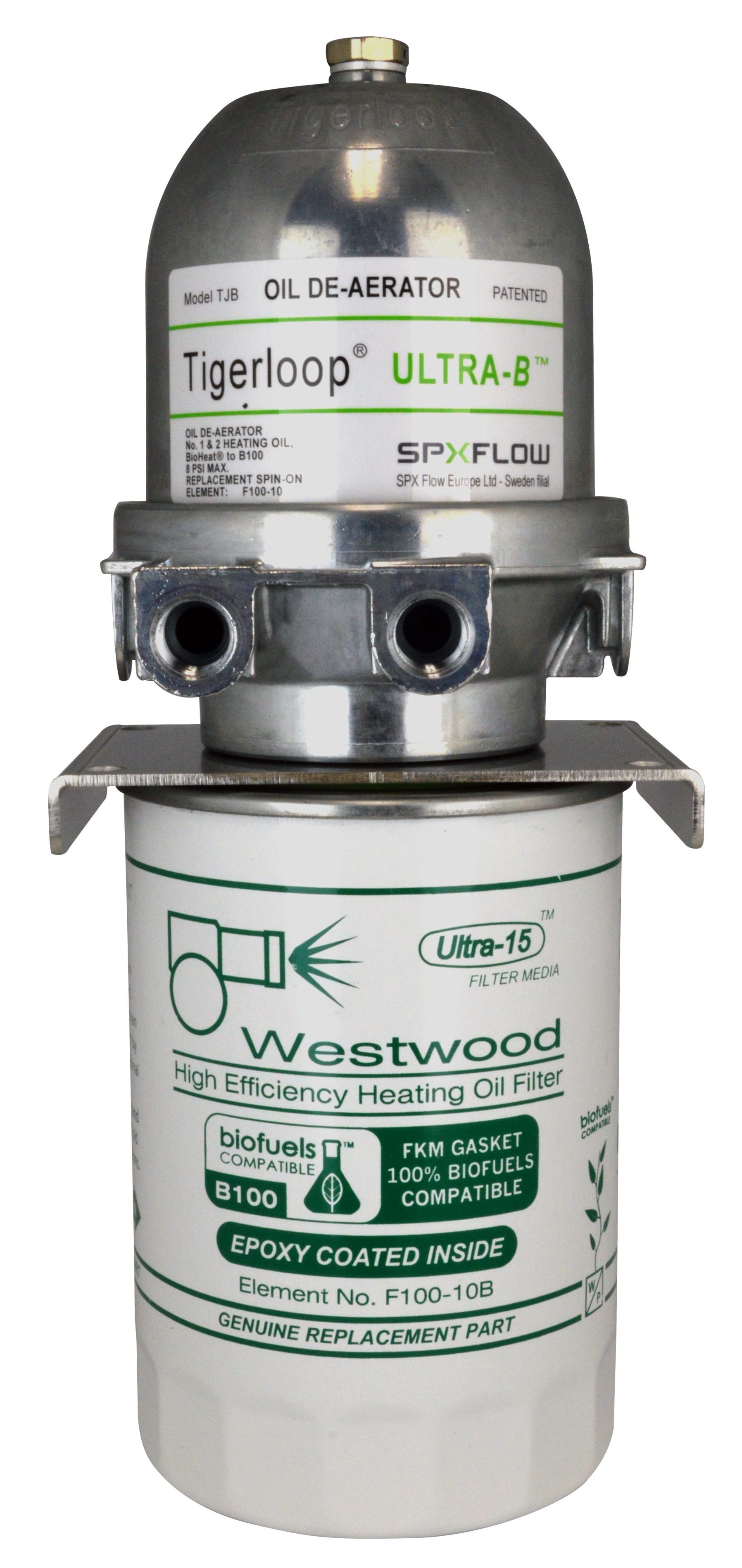

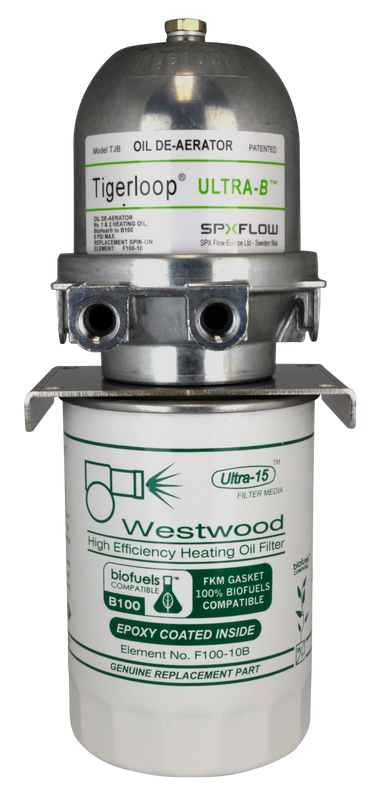

Westwood Tigerloop ULTRA-B S220-9 Oil Deaerator

$186.89
3.0 (1 review)
In stock (260)

The Tigerloop® Ultra-B is a 2-in-1 oil deaerator and filter unit that simplifies oil burner installations while delivering cleaner, more reliable combustion. By combining a proven deaeration chamber with an integrated 15-micron spin-on filter, the Ultra-B eliminates the need for separate components and reduces overall system complexity. It removes up to 95% of entrained air from the oil supply, conditioning fuel for cleaner combustion and dramatically reducing the lockouts, flameouts, and sputters that plague air-contaminated systems. Compatible with No. 1 and No. 2 heating oil as well as biodiesel blends up to B100, the Ultra-B handles a maximum nozzle capacity of 29.0 GPH and operates in temperatures from 20°F to 105°F. Connections are 1/4" NPT female; replacement filter element is the F100-10B.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • 2-in-1 deaerator and filter — integrates oil deaeration and a 15-micron spin-on filter in a single unit, reducing components and simplifying installation
  • Removes up to 95% of entrained air — conditions oil supply for cleaner combustion and reduced running vacuum
  • Reduces lockouts, flameouts, and sputters — eliminates air-related burner performance issues that lead to service calls
  • Extends filter element life — deaeration reduces contaminant load on the filter, improving overall system efficiency and maintenance intervals
  • Single-pipe system simplicity — transports oil at the nozzle firing rate only, eliminating the need for large-diameter two-pipe supply and return lines
  • B100 biodiesel compatible — works with No. 1 and No. 2 heating oil and all BioHeat blends up to 100% biodiesel
  • 29.0 GPH maximum nozzle capacity — 31.7 GPH maximum return flow; rated for 8 PSI maximum inlet pressure
  • Operating range 20°F–105°F — 1/4" NPT female connections; replacement element: F100-10B (15-micron, epoxy-lined canister)
Specifications
Manufacturer Part Number S220-9
UPC n/a
Overall Dimensions 13-1/2 in H
Material n/a
Domestic or Import n/a
End Style n/a
Type n/a
ADA Compliance n/a
Warning n/a
Standards and Approvals n/a
